Create a Redirect Session for a new Customer Registration

The Merchant can also create a redirect session for redirecting the customer to Zastrpay website for initial customer registration.

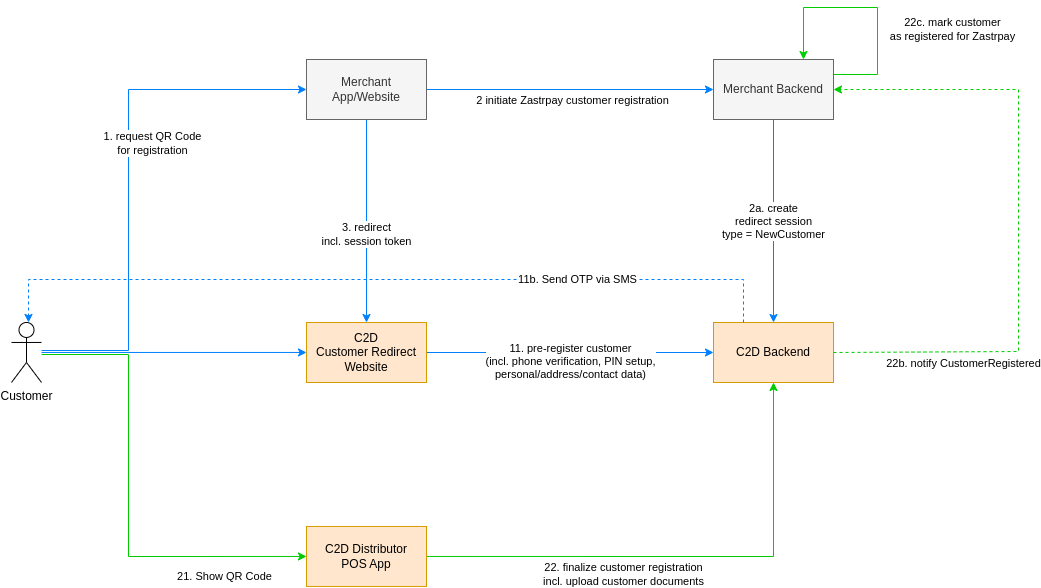

The diagram below illustrates the basic flow of a customer registration triggered from a merchant website:

Customer Registration

Steps:

  1. Customer goes to the Merchant website or app and chooses Zastrpay QR Code Cash Deposit or Withdrawal as the payment method
  2. The Merchant Website/Backend detects or asks if the customer is not yet registers, and creates a Redirect Session with type = NewCustomer by calling Zastrpay Backend
  3. The Merchant Website redirects customer to Zastrpay Customer Redirect Website
  4. The Customer registers with Zastrpay, and generates a QR Code for the Customer Registration
  5. The Customer goes to a Zastrpay Shop, presents the QR Code, after scanning of which an ID and potentially additional documents are requested from her/him, and the customer is verified and the registration is finalized
  6. Zastrpay System notifies Merchant Backend about the customer registration, so that the customer can be marked as registered at Zastrpay in the Merchant Backend
note

The Customer Registration is a standalone flow (separate from the new transaction flow), and the QR Code generated has the sole purpose of identifying the customer in the shop so that her/his registration can be finalized (different from the QR Code for a transaction).

For the purpose of customer registration the following Merchant Backend -> Zastrpay Backend API call must be implemented:

PUT https://host.com/customer-authentication-service/v1/redirect-sessions/{redirectSessionId}
Content-Type: application/json
x-api-key: $apiKey
x-request-id: $requestId

{
    "type": "NewCustomer",
    "redirectData": {
        "successUrl": "https://merchant-host.com/zastrpay-register-customer-success",
        "failureUrl": "https://merchant-host.com/zastrpay-register-customer-failure",
        "abortUrl": "https://merchant-host.com/zastrpay-register-customer-abort",
        "qrCodeSuccessUrl": "http://merchant-host.com/zastrpay-create-new-transaction-intent-qr-code-success"
    },
    "locale": "de-DE",
    "customerData": {
        "firstName: "Max",
        "lastName": "Mustermann",
        "dateOfBirth": "1946-10-29",
        "placeOfBirth": "Vienna",
        "nationality": "DE",
        "address": {
            "streetAddress": "Hauptstrasse 13/12/1",
            "city": "Vienna",
            "postalCode": "12345",
            "country": "DE",
        },
        "contact": {
            "email": "paul.smith@testabc.com"
        }
    }
}

Zastrpay Backend will answer with the following response:

200 OK

{
    "id": "bf050093-fce3-4013-8090-524799de3f69",
    "type": "ExistingTransactionIntent",
    "merchantId": "e51bc4a8-4263-11ea-b317-b7ad13e2406e",
    "customerId": "37257cd4-8ff1-46f7-bb20-0da4f954fede",
    "transactionIntentId": "08a29f86-0dbc-4ceb-a4eb-f202561cb53e",
    "redirectData": {
        "successUrl": "https://merchant-host.com/zastrpay-register-customer-success",
        "failureUrl": "https://merchant-host.com/zastrpay-register-customer-failure",
        "abortUrl": "https://merchant-host.com/zastrpay-register-customer-abort",
        "qrCodeSuccessUrl": "http://merchant-host.com/zastrpay-register-customer-qr-code-success"
    },
    "locale": "de-DE",
    "createdOn": "2023-01-26T13:04:59.5633378Z",
    "lastCorrelationId": "55a5c33e-9003-4ea7-8e31-cfe5e9acc008",
    "token": "eyJhbGciOiJSUzI1NiIsInR5cCI6IkpXVCIsImtpZCI6IjU2ODc4YmZlNzZiNDQyMTVhZmVkYzFkMzQzYTQ0NjU0In0.eyJzaWQiOiJiZjA1MDA5My1mY2UzLTQwMTMtODA5MC01MjQ3OTlkZTNmNjkiLCJtZXJjaElkIjoiZTUxYmM0YTgtNDI2My0xMWVhLWIzMTctYjdhZDEzZTI0MDZlIiwiYXV0aCI6Im90cCIsImN1c3RJZCI6IjM3MjU3Y2Q0LThmZjEtNDZmNy1iYjIwLTBkYTRmOTU0ZmVkZSIsImV4cCI6MTY3NDc0MDA5OSwiaXNzIjoiaHR0cHM6Ly9wYXkuZGV2LmMyZHBheW1lbnQuY29tIiwiYXVkIjoiaHR0cHM6Ly9wYXkuZGV2LmMyZHBheW1lbnQuY29tIn0.LKktJ4j2B-6UXrOrfmHQnqfeWSOvWQFPZJ_j1lJbacOAo-5IaIEMW0XB5kXyZc6qdOCJmIhuYM30SyiVu5TG7zii9zFuWRrdnIDu0tu_K-OJDU9rwn0Dtc-zreUq4VxzJs8utzZ6C7J3RVz3OVUIiDeMINKR0PFq-an4Ht81FSikZAnCreGbFpwsSn5HD9rBwLyDhlp7Dwl71yIn0fKIfAdtcUB6QEPycQi9-qGxYi0BDwy21rWJWI_kOsMi_kAnajtYD3ZB_8DInvAHZilWfV3pL_PuTAoA7OdKztkegt9wUCBQr_EPHU5rGxpBrUJLsYLBTvBqsJZEkp6gepyxtQ",
    "redirectUrl": "https://pay.dev.zastrpay.com",
    "customerData": {
        "firstName: "Max",
        "lastName": "Mustermann",
        "dateOfBirth": "1946-10-29",
        "placeOfBirth": "Vienna",
        "nationality": "DE",
        "address": {
            "streetAddress": "Hauptstrasse 13/12/1",
            "city": "Vienna",
            "postalCode": "12345",
            "country": "DE",
        },
        "contact": {
            "email": "paul.smith@testabc.com"
        }
    }
}

Here again the important response values to consider for the redirect are token and redirectUrl.

See Create Redirect Session API Reference for more information.

note

redirectData.successUrl should point to a page which (after the customer registration has succeeded) invites the customer to initiate a transaction.

Next, the Merchant should create another redirect session with type = NewTransactionIntent (see Create Redirect Session for new Transaction Intent) and redirect the customer once again to Zastrpay (see Redirect Customer).
